4 - 14
3/21/97

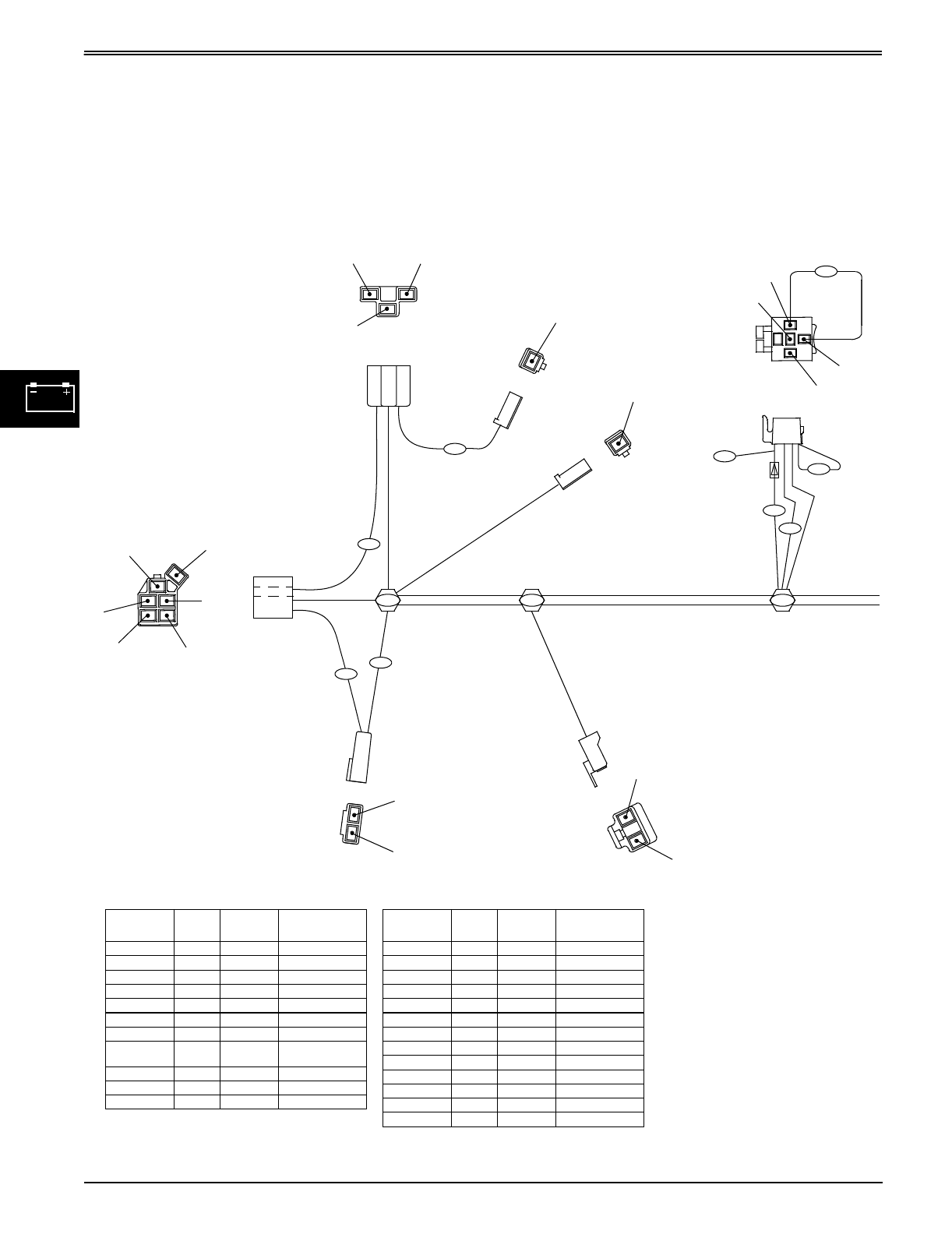

WIRING HARNESS DIAGRAMS
ELECTRICAL
STX38 (SN 160001—210000)
S5
Headlight
Switch
500
Seat
Switch
800
S4
1 2 3
715
800
110
750
720
510
520
520
450
520
510
715
714
500
510
710
714
700
200
100
941
715
714
650
Key
Switch
S1
PTO
Switch
S2
(Optional)
Fuse
Holder
Start
Relay
K2
Circuit
Number
Wire
Size
Color
Termination
Points
100 0.5 Blk S1, W1
105 0.5 Blk K2, W1
110 0.5 Blk K2, K2
120 1.0 Blk Y1, W2
125 1.0 Blk E2, W2
130 0.8 Blk K1, W1
200 1.0 Red S1, F1
201 0.5 Red-
Fuse
F1, K1
210 1.0 Red K1, X1, N1
450 1.0 Yel/Wht S6, S5
500 0.8 Yel S1, S4
Circuit
Number
Wire
Size
Color
Termination
Points
510 1.0 Yel S2, S1
520 1.0 Yel S2, S5
650 0.8 Brn S4, Y2
700 0.8 Pur S1, K1
710 0.8 Pur S1, S3
714 0.8 Pur/Blk S1, F2
715 0.5 Pur/Blk F2, Diode, K2
716 0.5 Diode Diode, K2
720 0.8 Pur S2, S3
750 1.0 Blu S2, Y1
800 0.8 Pnk S4, K2
940 0.5 Wht K2, X1, A1
941 0.5 Wht K2, S1
800
716
110
105
110
941
940
110
F2
716
Diode
