3/21/97

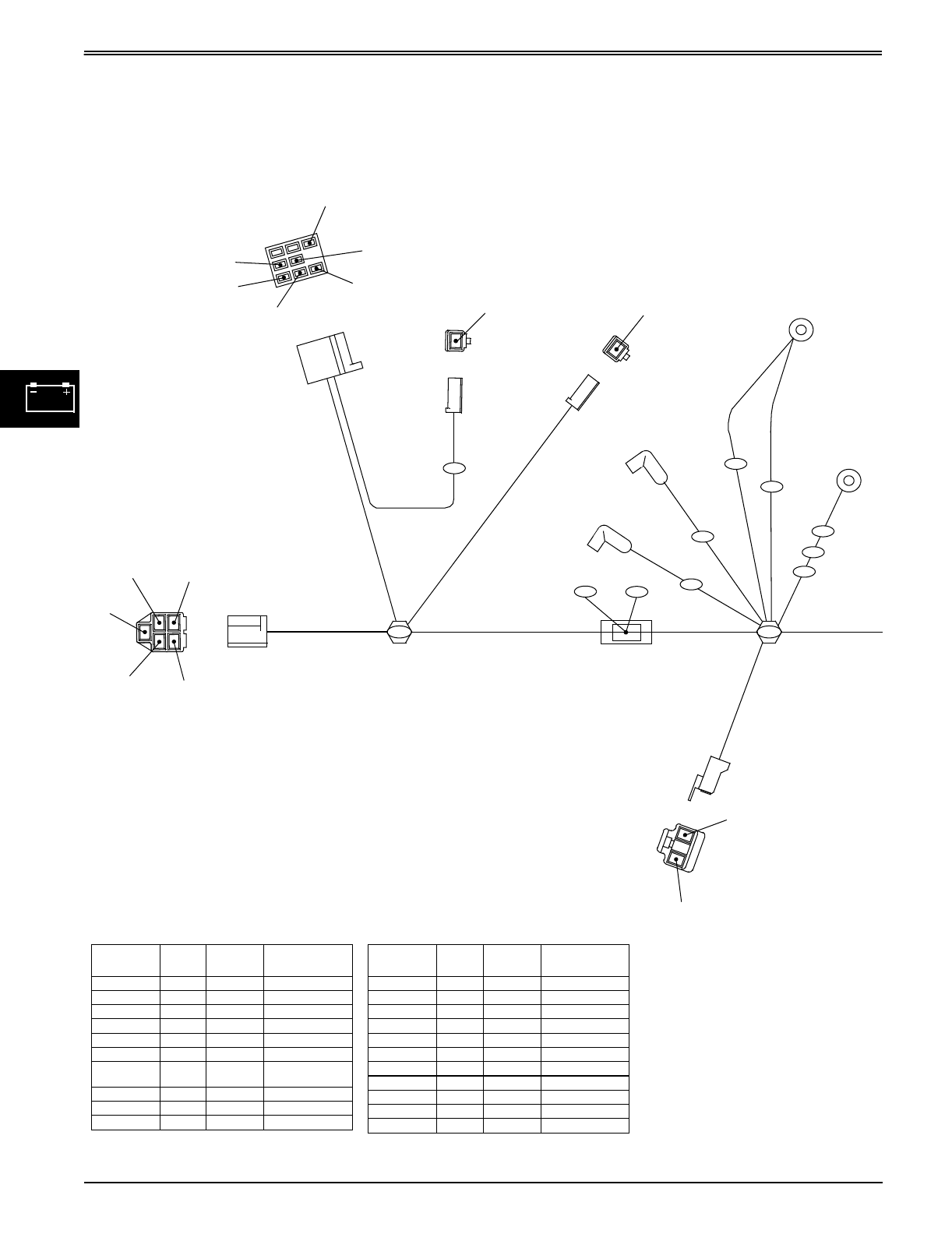

WIRING HARNESS DIAGRAMS
ELECTRICAL
STX38 (SN 210001— )
STX46 (SN 240001— )
S5
Headlight
Switch
945
Seat
Switch
S4
1 2
450
451
100
700
200
400
942
110
Key
Switch
S1
PTO
Switch
S2
(Optional)
401
941
Frame
W1
Ground
Fusible
Link
F1
450
105
220
201
105
110
100
710
200
201
946
946
941
400
450
705
750
700
Circuit
Number
Wire
Size
Color
Termination
Points
100 1.0 Blk S1, W1
105 1.0 Blk K1, W1
110 0.5 Blk W1, S4
120 0.8 Blk E2, W2
125 0.8 Blk Y1, W2
200 0.8 Red S1, F1
201 0.5 Lt Org-
Fuse
F1, K1
220 0.8 Red K1, X1, N1
400 0.8 Yel S1, S2
401 0.5 Yel Y2, S1
Circuit
Number
Wire
Size
Color
Termination
Points
450 0.8 Yel/Wht S5, S2
451 0.8 Yel/Wht E2, S5
700 0.8 Pur S1, S2
705 0.8 Pur/Wht S2, S3
710 0.8 Pur K1, S3
750 0.8 Blu S2, Y1
940 1.0 Wht S3, X1, A1
941 1.0 Wht S2, S1
942 0.5 Wht S3, S1
945 0.5 Wht/Blk S4, S3
946 0.5 Wht/Blk S4, S2
Starter
K1
Solenoid
Ground
Starter
K1
Solenoid
Starter
K1
Solenoid
B+
