4 - 12
3/21/97

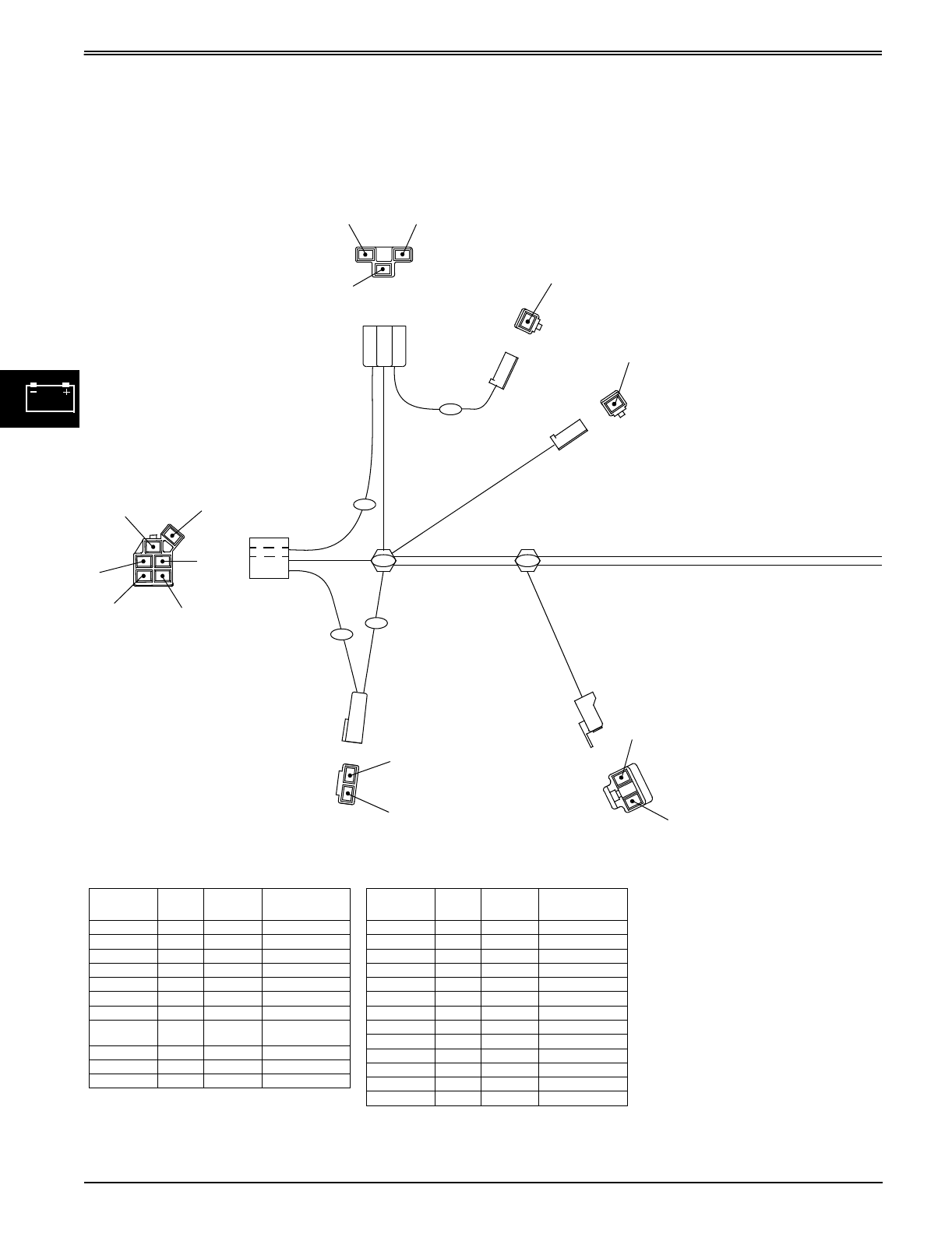

WIRING HARNESS DIAGRAMS
ELECTRICAL
STX30 (SN 135160—160000)
STX38 (SN 139616—160000)
S5
Headlight
Switch
500
Seat
Switch
800
S4
1 2
750
720
510
520
520
450
520
510
715
714
500
510
7
10
7
14
700
200
100
941
715
714
650
Key
Switch
S1
PTO
Switch
S2
(Optional)
F2
Holder
Circuit
Number
Wire
Size
Color
Termination
Points
100 0.5 Blk S1, W1
105 0.5 Blk K2, W1
110 0.5 Blk K2, K2
120 1.0 Blk Y1, W2
125 1.0 Blk E2, W2
130 0.8 Blk K1, W1
200 1.0 Red S1, F1
201 0.5 Red-
Fuse
F1, G1
210 1.0 Red K1, X1, N1
450 1.0 Yel/Wht S5, E2
500 0.8 Yel S1, S4
Circuit
Number
Wire
Size
Color
Termination
Points
510 1.0 Yel S2, S1
520 1.0 Yel S2, S5
650 0.8 Brn S4, Y2
700 0.8 Pur S1, K1
710 0.8 Pur S1, S3
714 0.8 Pur/Blk S1, F2
715 0.5 Pur/Blk F2, Diode, K2
716 0.5 Diode Diode, K2
720 0.8 Pur S2, S3
750 1.0 Blu S2, Y1
800 0.8 Pnk S4, K2
940 0.5 Wht K2, A1, X1
941 0.5 Wht K2, S1
Fuse
